Thermoplastic Polyurethane

We Are the Sole Distributor of Miracll Chemical Co., LTD, China for A TPU Business in all India.
Thermoplastic polyurethane (TPU) is any of a class of polyurethane plastics with many properties, including elasticity, transparency, and resistance to oil, grease, and abrasion. It can be customized in terms of its hardness or softness of segments. It allows the user with processing flexibility and versatility. Also, our Thermoplastic Polyurethane is highly accredited for various other properties such as abrasion resistance, rigidity, optical clarity and low temperature flexibility. Further, TPU is widely utilized for numerous applications such as for molding or making adhesives and footwear.

  • E380
  • E385
  • E390
  • E355
  • E275
  • E180
  • E155
  • E165
  • E230
  • E220
  • E380
    Polyester-based TPU
    Features
    Excellent Processing Properties, Fast Setting Time, No Migration, Cost Saving
    Applications

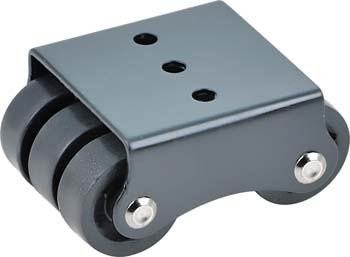

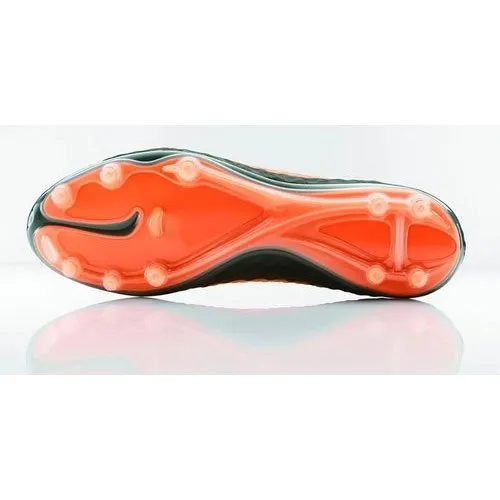

    Phone & Pad Cover, Footwear, Compounding & Modifier, Wheel & Castor, Hose & Tube, Overmolding etc.

  • TYPICAL COMPONENT PROPERTIES
    Properties Standard Unit Value
    Density ASTM D792 g/cm3 1.19
    Hardness ASTM D2240 Shore A 83
    Tensile Strength ASTM D412 MPa 35
    100% Modulus ASTM D412 MPa 5
    300% Modulus ASTM D412 MPa 9
    Elongation at Break ASTM D412 % 550
    Tear Strength ASTM D624 KN/m 85
  • PROCESSING GUIDE
    For optimum results, previous drying of the product during 6-8hours at 70-80℃ is advisable, in a desiccant-air dryer. The suggested processing-temperature profiles for injection & extrusion are depicted in the figure below.

    Processing Guide for Injection Molding

    Item Parameter
    Nozzle(°C) 200
    Metering Zone(°C) 195
    Compression Zone(°C) 190
    Feeding Zone(°C) 185
    Injection Pressure(bar) 70

    Processing Guide for Extrusion

    Item Parameter
    Die(°C) 185
    Adapter(°C) 190
    Metering Zone (°C) 185
    Compression Zone (°C) 180
    Feeding Zone (°C) 175
  • HSE INFORMATION

    Please take MSDS for reference

  • E385
    Polyester-based TPU
    ◼ Features
    Excellent Processing Properties, Fast Setting Time, No Migration, Cost Saving
    ◼ Applications

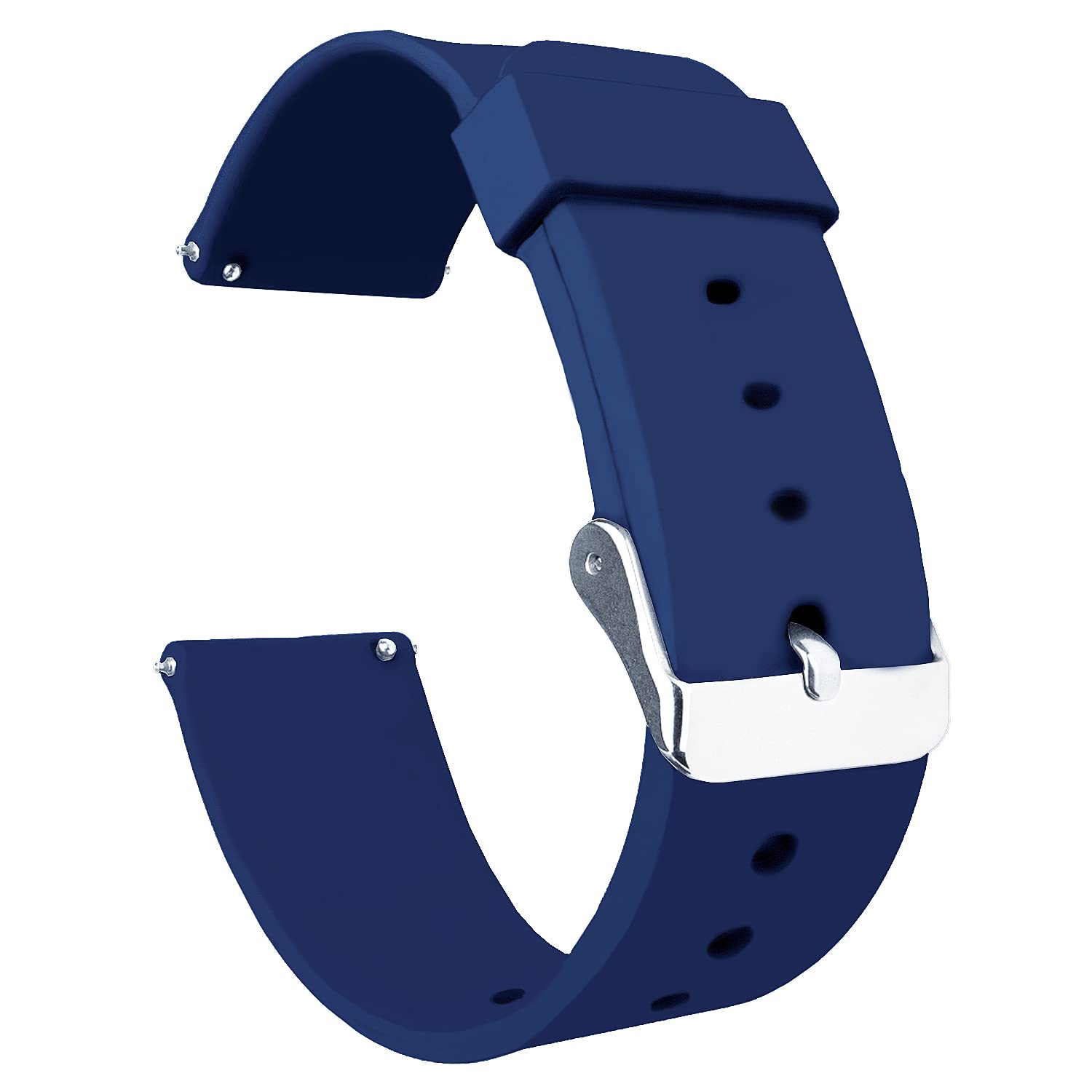

    Phone & Pad Cover, Footwear, Compounding & Modifier, Watch Straps, Overmolding etc

  • TYPICAL COMPONENT PROPERTIES
    Properties Standard Unit Value
    Density ASTM D792 g/cm3 1.20
    Hardness ASTM D2240 Shore A 87
    Tensile Strength ASTM D412 MPa 37
    100% Modulus ASTM D412 MPa 6
    300% Modulus ASTM D412 MPa 10
    Elongation at Break ASTM D412 % 500
    Tear Strength ASTM D624 KN/m 90
  • PROCESSING GUIDE
    For optimum results, previous drying of the product during 3-4hours at 80-90℃ is advisable, in a desiccant-air dryer. The suggested processing-temperature profiles for injection & extrusion are depicted in the figure below.

    Processing Guide for Injection Molding

    Item Parameter
    Nozzle(°C) 200
    Metering Zone(°C) 195
    Compression Zone(°C) 190
    Feeding Zone(°C) 185
    Injection Pressure(bar) 70

    Processing Guide for Extrusion

    Item Parameter
    Die(°C) 185
    Adapter(°C) 190
    Metering Zone (°C) 185
    Compression Zone (°C) 180
    Feeding Zone (°C) 175
  • HSE INFORMATION

    Please take MSDS for reference

  • E390
    Polyester-based TPU
    ◼ Features
    Excellent Processing Properties, Fast Setting Time, No Migration, Cost Saving
    ◼ Applications
    Phone & Pad Cover, Footwear, Compounding & Modifier, Wheel & Castor, Hose & Tube, Overmolding etc.

  • TYPICAL COMPONENT PROPERTIES
    Properties Standard Unit Value
    Density ASTM D792 g/cm3 1.20
    Hardness ASTM D2240 Shore A 93
    Tensile Strength ASTM D412 MPa 40
    100% Modulus ASTM D412 MPa 10
    300% Modulus ASTM D412 MPa 13
    Elongation at Break ASTM D412 % 450
    Tear Strength ASTM D624 KN/m 95
  • PROCESSING GUIDE
    For optimum results, previous drying of the product during 6-8hours at 70-80℃ is advisable, in a desiccant-air dryer. The suggested processing-temperature profiles for injection & extrusion are depicted in the figure below.

    Processing Guide for Injection Molding

    Item Parameter
    Nozzle(°C) 210
    Metering Zone(°C) 205
    Compression Zone(°C) 200
    Feeding Zone(°C) 195
    Injection Pressure(bar) 80

    Processing Guide for Extrusion

    Item Parameter
    Die(°C) 190
    Adapter(°C) 195
    Metering Zone (°C) 190
    Compression Zone (°C) 185
    Feeding Zone (°C) 180
  • HSE INFORMATION

    Please take MSDS for reference

  • E355
    Polyester-based TPU
    ◼ Features
    Excellent Processing Properties, Fast Setting Time, No Migration, Cost Saving
    ◼ Applications
    Wheel & Castor, Injecting, etc.

  • TYPICAL COMPONENT PROPERTIES
    Properties Standard Unit Value
    Density ASTM D792 g/cm3 1.21
    Hardness ASTM D2240 Shore D 55
    Tensile Strength ASTM D412 MPa 35
    100% Modulus ASTM D412 MPa 10
    300% Modulus ASTM D412 MPa 20
    Elongation at Break ASTM D412 % 400
    Tear Strength ASTM D624 KN/m 140
  • PROCESSING GUIDE
    For optimum results, previous drying of the product during 6-8hours at 70-80℃ is advisable, in a desiccant-air dryer. The suggested processing-temperature profiles for injection & extrusion are depicted in the figure below.

    Processing Guide for Injection Molding

    Item Parameter
    Nozzle(°C) 215
    Metering Zone(°C) 210
    Compression Zone(°C) 205
    Feeding Zone(°C) 200
    Injection Pressure(bar) 90

    Processing Guide for Extrusion

    Item Parameter
    Die(°C) 195
    Adapter(°C) 190
    Metering Zone (°C) 185
    Compression Zone (°C) 180
    Feeding Zone (°C) 175
  • HSE INFORMATION

    Please take MSDS for reference

  • E275
    Polyester-based TPU
    ◼ Features
    Good Flowability, No Migration, Good Low Temperature Flexibility, Favorable Hand Fee.
    ◼ Applications

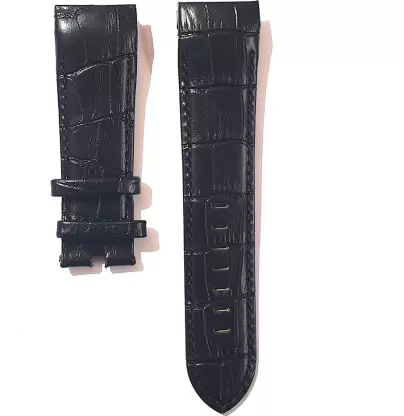

    Footwear, Compounding, Watch Belt etc.

  • TYPICAL COMPONENT PROPERTIES
    Properties Standard Unit Value
    Density ASTM D792 g/cm3 1.19
    Hardness ASTM D2240 Shore A 75
    Tensile Strength ASTM D412 MPa 20
    100% Modulus ASTM D412 MPa 3
    300% Modulus ASTM D412 MPa 6
    Elongation at Break ASTM D412 % 650
    Tear Strength ASTM D624 KN/m 65
  • PROCESSING GUIDE
    For optimum results, previous drying of the product during 3-4 hours at 80-95℃ is advisable.

    Processing Guide for Injection Molding

    Item Parameter
    Nozzle(°C) 195
    Metering Zone(°C) 190
    Compression Zone(°C) 185
    Feeding Zone(°C) 180
    Injection Pressure(bar) 80

    Processing Guide for Extrusion

    Item Parameter
    Die(°C) 185
    Adapter(°C) 190
    Metering Zone (°C) 185
    Compression Zone (°C) 180
    Feeding Zone (°C) 175
  • HSE INFORMATION

    Please take MSDS for reference

  • E180
    Polyester-based TPU
    ◼ Features
    Low Temperature Flexibility, Oil Resistance, Excellent Elasticity, Abrasion Resistance, etc.
    ◼ Applications

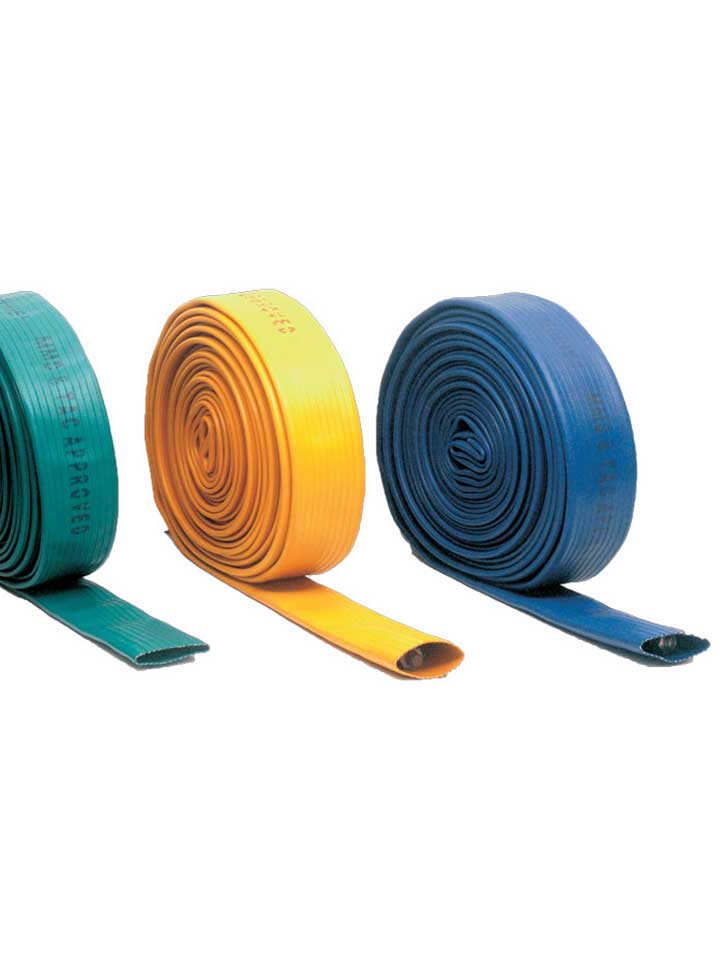

    Film & Sheet, Hose & Tube, Belting, Wire & Cable, Elastics, Shoulder Girdle, Compounding, etc.

  • TYPICAL COMPONENT PROPERTIES
    Properties Standard Unit Value
    Density ASTM D792 g/cm3 1.19
    Hardness ASTM D2240 Shore A 81
    Tensile Strength ASTM D412 MPa 32
    100% Modulus ASTM D412 MPa 5
    300% Modulus ASTM D412 MPa 9
    Elongation at Break ASTM D412 % 550
    Tear Strength ASTM D624 KN/m 90
  • PROCESSING GUIDE
    For optimum results, previous drying of the product during 3-4 hours at 80-90℃ is advisable..

    Processing Guide for Injection Molding

    Item Parameter
    Nozzle(°C) 205
    Metering Zone(°C) 210
    Compression Zone(°C) 205
    Feeding Zone(°C) 180
    Injection Pressure(bar) 80

    Processing Guide for Extrusion

    Item Parameter
    Die(°C) 190
    Adapter(°C) 195
    Metering Zone (°C) 195
    Compression Zone (°C) 185
    Feeding Zone (°C) 170
  • HSE INFORMATION

    Please take MSDS for reference

  • E155
    Polyester-based TPU
    ◼ Features
    Fast Crystallization Rate, Good Transparence, Abrasion Resistance, etc.
    ◼ Applications
    Hose & Tube, Caster, Seals, Shoe Material, etc.

  • TYPICAL COMPONENT PROPERTIES
    Properties Standard Unit Value
    Density ASTM D792 g/cm3 1.21
    Hardness ASTM D2240 Shore D 57
    Tensile Strength ASTM D412 MPa 45
    100% Modulus ASTM D412 MPa 15
    300% Modulus ASTM D412 MPa 30
    Elongation at Break ASTM D412 % 400
    Tear Strength ASTM D624 KN/m 180
  • PROCESSING GUIDE
    For optimum results, previous drying of the product during 3-4 hours at 100-110℃ is advisable.

    Processing Guide for Injection Molding

    Item Parameter
    Nozzle(°C) 215
    Metering Zone(°C) 215
    Compression Zone(°C) 215
    Feeding Zone(°C) 195
    Injection Pressure(bar) 80

    Processing Guide for Extrusion

    Item Parameter
    Die(°C) 200
    Adapter(°C) 205
    Metering Zone (°C) 205
    Compression Zone (°C) 200
    Feeding Zone (°C) 180
  • HSE INFORMATION

    Please take MSDS for reference

  • E165
    Polyester-based TPU
    ◼ Features
    Good Abrasion Resistance, Excellent Mechanical Property, Oil / Solvent Resistance.
    ◼ Applications
    Casters, Heel lift, injection molding, etc.

  • TYPICAL COMPONENT PROPERTIES
    Properties Standard Unit Value
    Density ASTM D792 g/cm3 1.21
    Hardness ASTM D2240 Shore A 65
    Tensile Strength ASTM D412 MPa 55
    100% Modulus ASTM D412 MPa 22
    300% Modulus ASTM D412 MPa 40
    Elongation at Break ASTM D412 % 350
    Tear Strength ASTM D624 KN/m 200
  • PROCESSING GUIDE
    For optimum results, previous drying of the product during 3-4 hours at 60-70℃ is advisable.

    Processing Guide for Injection Molding

    Item Parameter
    Nozzle(°C) 225
    Metering Zone(℃) 220
    Metering Zone (°C) 220
    Compression Zone (°C) 215
    Injection Pressure(bar) 95
  • HSE INFORMATION

    Please take MSDS for reference

  • E230
    Polyester-based TPU
    ◼ Features
    High Bonding Strength and Peel Strength, Excellent Extrusion Consistency, Excellent solubility performance.
    ◼ Applications

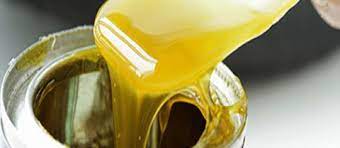

    Hot Melt Films and Tapes, Solvent-based Adhesives, Footwear Adhesives, Fire Hose Adhesives, etc.

  • TYPICAL COMPONENT PROPERTIES
    Minimum Activation Temperature
    Properties Standard Unit Value
    Density ASTM D792 g/cm3 1.2
    Hardness ASTM D2240 Shore A 95
    Viscosity (15% in MEK 25Cº) ISO 3219 mpa.s 2500-3500
    Max.Toluene in solvents- % 30-35
    Tensile Strength ASTM D412 MPa 40
    Tear Strength ASTM D624 KN/m 100
    Bonding strength PVCvsPVC，After 10min kg/2.5cm 8-13
    Crystallization Rate --Fast
    Tack-free time-min 15
    - ℃ 55-65
  • PROCESSING GUIDE
    For optimum results, previous drying of the product during 6-8hours at 70-80°C is advisable, in a desiccant-air dryer. The suggested processing-temperature profiles for injection & extrusion are depicted in the figure belo.

    Solution processing advice(Y: soluble S: swelling)

    Item Parameter
    DMF Y
    MEK Y
    Acetone Y
    Trichloromethane S
    Ethyl acetate S
    Toluene S

    Processing Guide for Extrusion

    Item Parameter
    Die(°C) 185
    Adapter(°C) 190
    Metering Zone (°C) 180
    Compression Zone (°C) 170
    Feeding Zone (°C) 120
  • HSE INFORMATION

    Please take MSDS for reference

  • E220
    Polyester-based TPU
    ◼ Features
    High Bonding Strength and Peel Strength, Excellent Extrusion Consistency, Excellent solubility performance.
    ◼ Applications
    Hot Melt Films and Tapes, Solvent-based Adhesives, Footwear Adhesives, Fire Hose Adhesives, etc.

  • TYPICAL COMPONENT PROPERTIES
    Minimum Activation Temperature
    Properties Standard Unit Value
    Density ASTM D792 g/cm3 1.2
    Hardness ASTM D2240 Shore A 95
    Viscosity (15% in MEK 25Cº) ISO 3219 mpa.s 1500-2500
    Max.Toluene in solvents- % 30-35
    Tensile Strength ASTM D412 MPa 40
    Tear Strength ASTM D624 KN/m 100
    Bonding strength PVCvsPVC，After 10min kg/2.5cm 8-13
    Crystallization Rate --Fast
    Tack-free time-min 15
    - ℃ 55-65
  • PROCESSING GUIDE

    Solution processing advice(Y: soluble S: swelling)

    Item Parameter
    DMF Y
    MEK Y
    Acetone Y
    Trichloromethane S
    Ethyl acetate S
    Toluene S

    Processing Guide for Extrusion

    Item Parameter
    Die(°C) 185
    Adapter(°C) 190
    Metering Zone (°C) 180
    Compression Zone (°C) 170
    Feeding Zone (°C) 100
  • HSE INFORMATION

    Please take MSDS for reference
